Private spa with jacuzzi and marble steps in a Marbella villa basement

Project · Integral renovation

Private Wellness & CinemaMarbella

A villa basement turned into a private spa and a soundproofed cinema, where sound, water and air had to be controlled underground without a trace showing.

Location: Marbella
Intervention: Integral basement renovation
Programme: Cinema · spa · bar · games room

Discuss a project like this

01The project

A floating room for sound, a sealed room for water, and neither allowed to show.

The cinema is a box inside the house, decoupled from the structure so vibration never reaches it. The spa sits below ground, waterproofed in several layers before a single handmade tile went on. Climate for both runs through ducts hidden in the lighting coves.

318m
LED strip at 2700K
90
Recessed spots
5
Independent ducted AC units
Floating
Cinema box, decoupled from the structure

02Invisible luxury

See what the photograph doesn't show.

Drag across the bar. On the left, the systems and set-out behind a room that looks effortless.

Basement bar and lounge with cove lighting, glazed cabinets and polished stone floor

Drag the handle to compare.

Lighting coveAirzone linear grille concealed in the cove line
Recessed spotsPart of 90 spots and 318 m of 2700K LED
MouldingsNoel & Marquet profiles around the mirror panels
Iron and extra-clear glassCustom doors, fabricated to size
Polished stone floorSet out to the axis of the room

03The cinema wall, layer by layer

Mass, spring, mass: the room floats inside the house.

Each membrane does a different job: one adds mass, one absorbs, one breaks the path of vibration. Together they keep the film inside the room and the house outside it.

StructureExisting basement wall

ROCDANRock wool acoustic panel

ACUSTIDANAcoustic membrane with felt

Decoupled framingNo rigid contact with the structure

M.A.D.4High-density acoustic membrane

PlasterboardDouble layer, staggered joints

04The finished spaces

Everything underneath is why it looks the way it does.

Spa pool with warm cove lighting in the villa basement — Spa

Private cinema with decorative wall panels, ambient LED and plush seating — Private cinema

Private cinema with acoustic wall panels and ambient lighting — Cinema, acoustic panels

Marble-lined steam shower with brass fittings — Steam room

Lounge corner with armchair and artwork — Lounge

Handmade Zellige tiles in the steam room — Steam room, Zellige

05Specification

Every material, and where it went.

The full specification, as it appears in our technical file for the project.

Acoustics

ROCDANRock wool acoustic panelCinema walls and ceiling

ACUSTIDANMembrane with feltCinema walls

M.A.D.4High-density membraneCinema envelope

Wet rooms

Multi-layer waterproofingTechnical system for below-ground wet areasJacuzzi and steam room

ZelligeHandmade glazed tileSteam room finish

Stone

CalacattaNatural marbleSpa surfaces

Sant LaurentNatural marbleFeature surfaces

Climate

Ducted AC, 5 unitsIndependent zonesCinema, spa, bar

Airzone linear grillesConcealed in lighting covesThroughout

Finishes & systems

Calacatta PrestigioLarge format, 320 × 160 cmSpa walls

GRATO Legend timberHungarian point patternLounge and bar floors

GESSIAntique brass PVDFittings

Lutron & KNXIntegrated automationLighting and climate

Benjamin MooreStucco finishWalls

06What we executed

Three engineering problems, one team.

01Mass-spring-mass acoustic system with ACUSTIDAN, ROCDAN and M.A.D.4, creating a floating box for the cinema
02Custom-built jacuzzi and steam room with multi-layer technical waterproofing below ground
03Handmade Zellige finish applied only after the waterproofing was proven
04Five independent ducted AC units with Airzone linear grilles hidden in the lighting coves
05Calacatta and Sant Laurent marble throughout the spa
0690 recessed spots and 318 m of 2700K LED strip
07Custom 1.80 × 1.80 m jacuzzi

07The technical challenge

Sound, water and air, underground.

A cinema needs silence, a spa needs a perfect seal and both need climate control that nobody sees. In a basement, each of those problems makes the others harder. The answer was to solve all three in the envelope, before any finish was chosen.

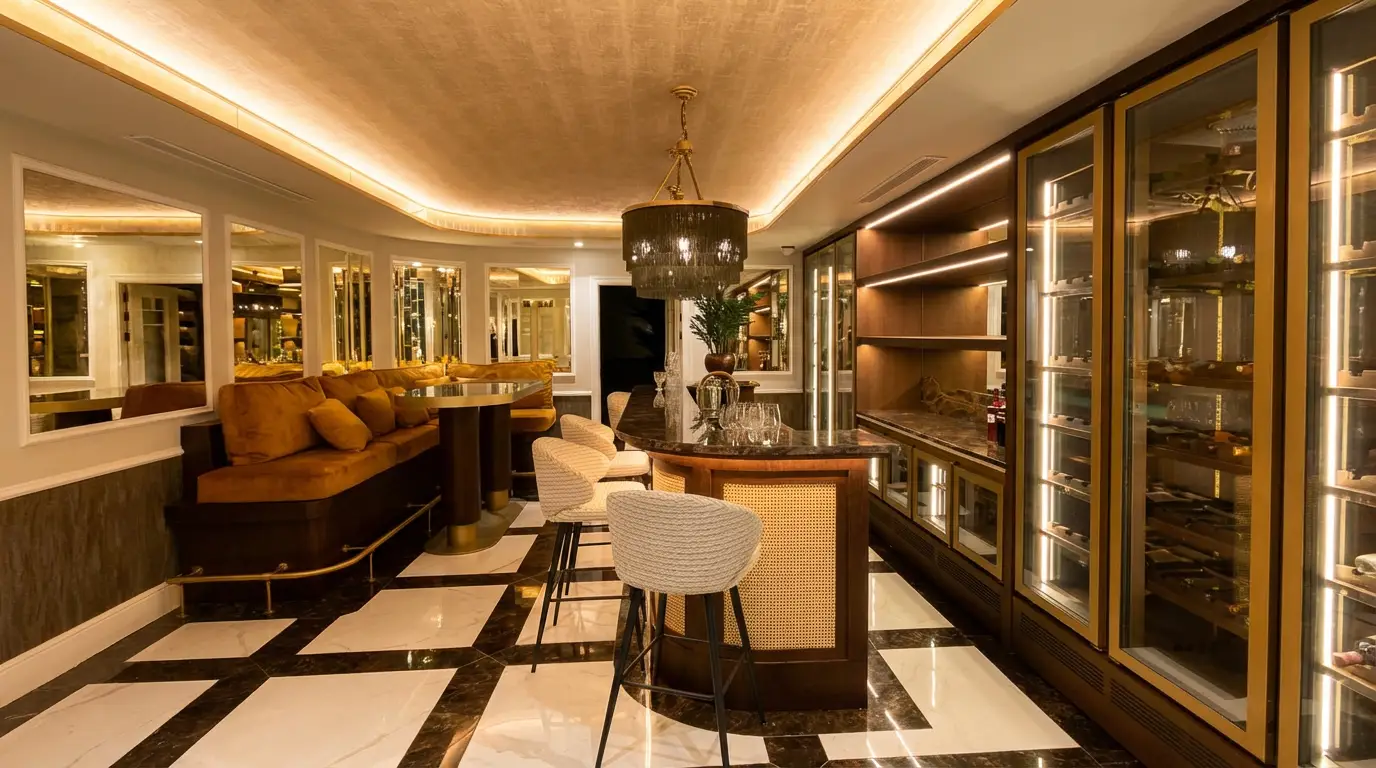

Bar counter and lounge seating under cove lighting
